Yale Assure Keyed Electronic Digital Deadbolt Satin Chrome – This Old House

Lock and unlock your home without the hassle of keys.

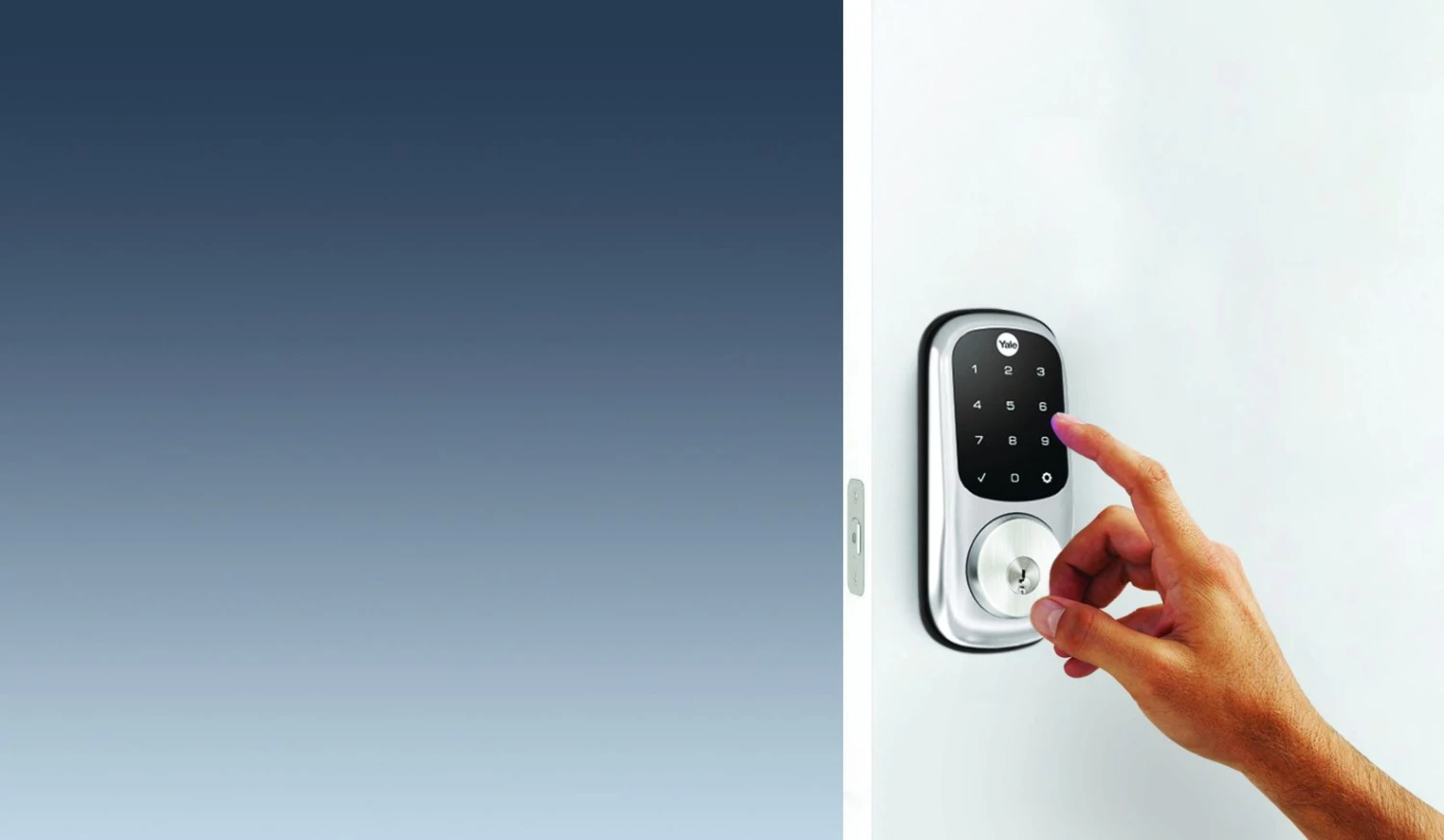

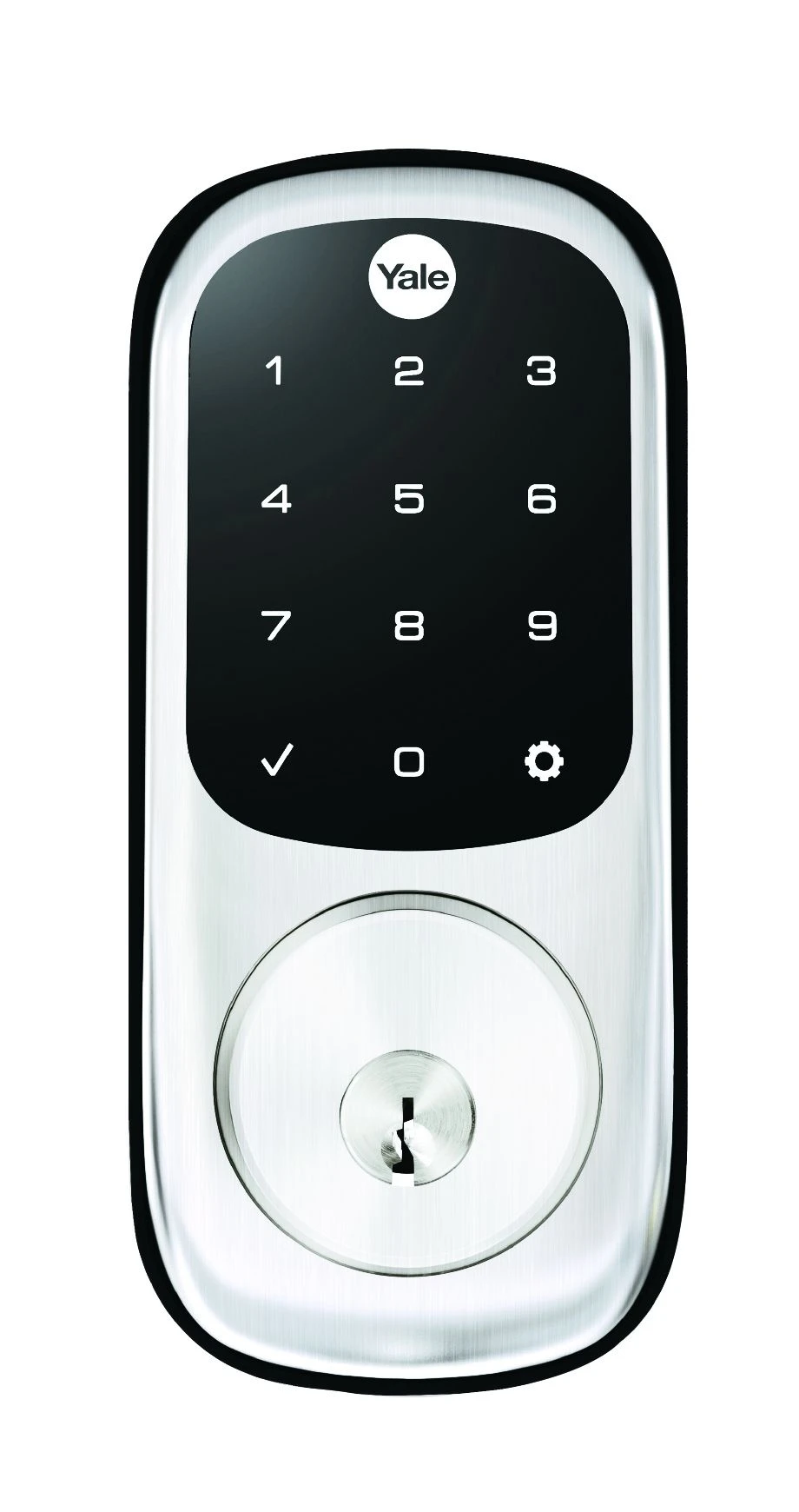

Create unique PIN codes to share with your family and friends for ultimate convenience. Including a backlit touch screen keypad, users have the option of entering a PIN code to unlock the door.

An automatic re-lock function is available so that when the latch is retracted, the lock will automatically lock after a specified period of time.

The Yale Assure Lock digital deadbolt can be upgraded with a Yale module (Yale Access, Z-Wave Plus* and ZigBee*) to seamlessly integrate into most home automation and alarm systems. *Modules are sold separately or see the complete kits also listed.

PRODUCT SPECIFICATIONS

Backset	Adjustable 60-70mm
Battery type	AA
Body/Case Material	Zinc
Bolt Type/Function	Deadbolt
Door Thickness Range	35mm to 50mm
Door Preparation	25mm latch hole and 54mm lock hole
Lock Type	Deadbolt
No. of Keys	5 digital keys supplied
Product Capability	Android devices running 4.3 or later, iOS devices running 9.0 or later
Finish	Satin Chrome
Warranty/Guarantee	Yale 1 year electromechanical Yale 10 year mechanical warranty
Key Profile	C4
Outside Temperature Range	30 to 60 degrees
Inside Temerature Range	15 to 70 degrees
Operating Humidity	up to 95%
Approvals	RCM & CE certification ASNZS 61000.6.3 2012

Please allow up to 5 business days to dispatch this product
