SEINE FORGED BRASS ENTRY SET

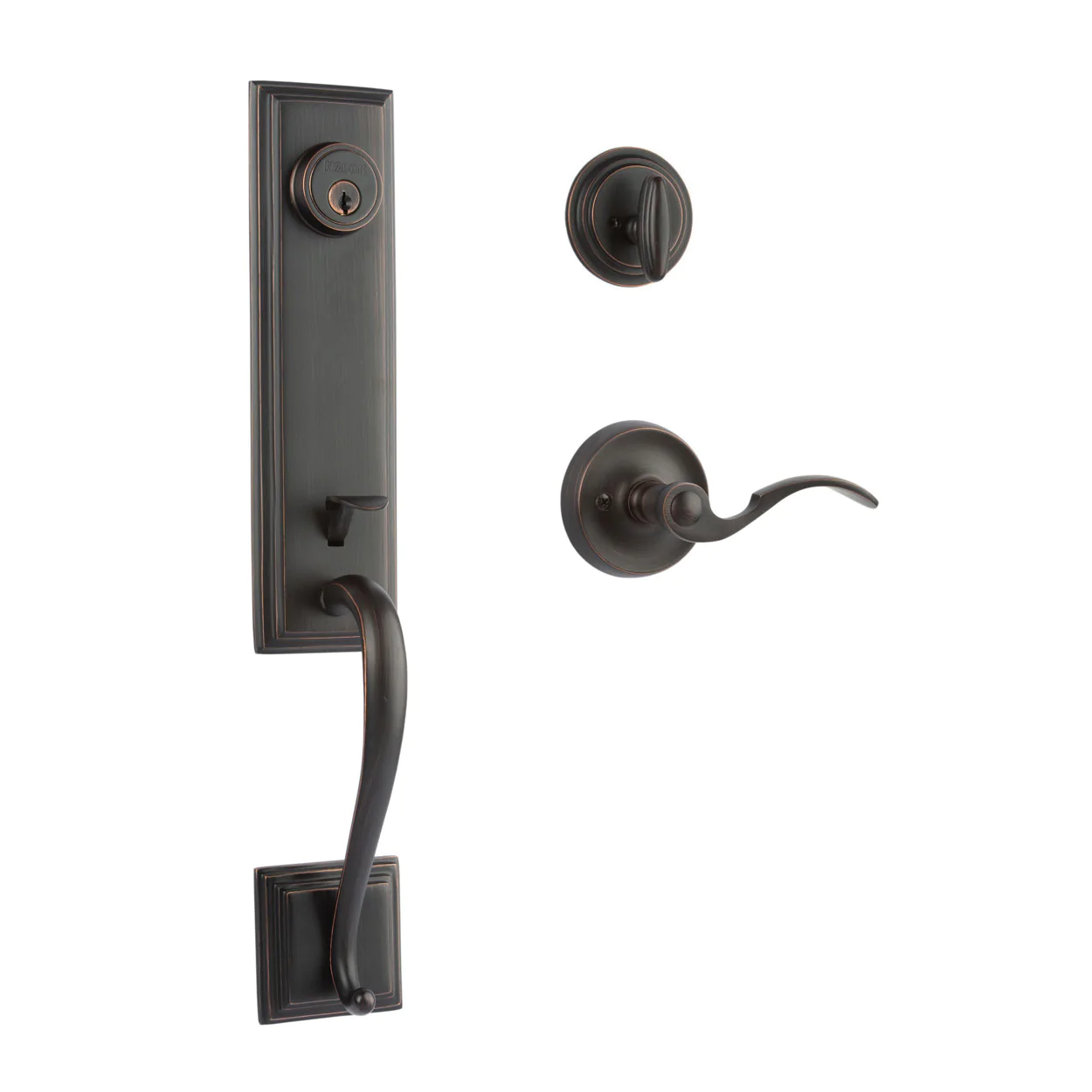

The Seine entry set is a stylish combination entrance set used for a front door that combines a thumb latch, pull handle and a keyed deadbolt. Made of solid forged brass substrate for enduring style and strength.
Supplied with the Flutto Lever, a ‘wave’ style internal lever as standard. Also available with optional Spira Lever a ‘spiral’ style lever or the Uovo Knob, an oval ‘egg’ style knob instead of the Flutto lever. Note – the Uovo Knob is not available on Interconnecting sets.

• Forged brass is 250% stronger than cast brass
• 6 pin solid brass cylinder with the popular C4 keyway for more security
• 3 identically cut keys supplied with each entry handle suite
• Adjustable 60mm to 70mm backset on the spring latch & dead-bolt latch
• Smart non-handed lever design means 1 set suits both left & right hand door installations
• Easy to install with clear instructions & template
• Suitable for door thickness 35-45mm (Extension kit available upon request)
• Warranty 5 years on finish and 7 years on mechanical *see NOTE below regarding warranty on specific finishes.

Functions:

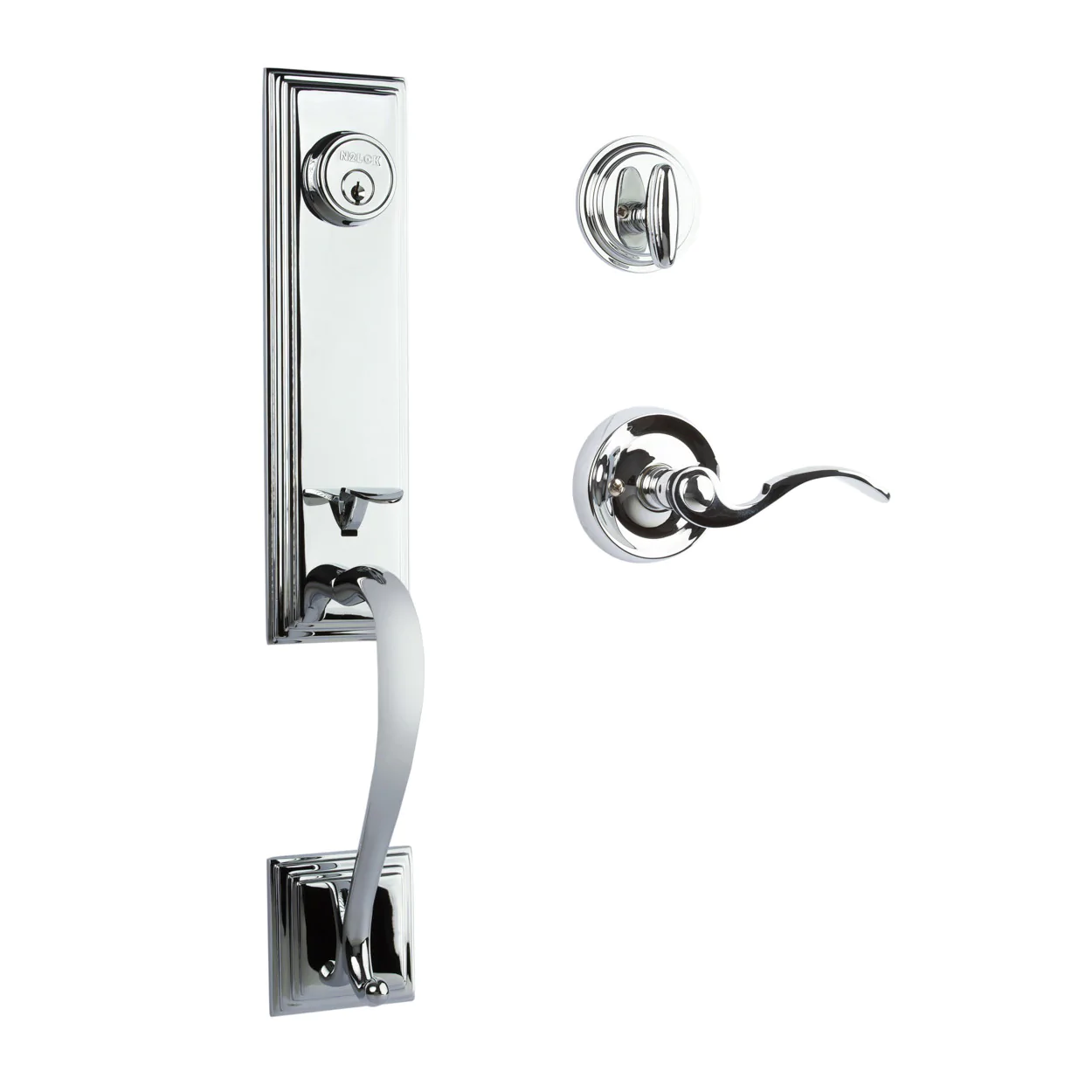

Single Cylinder – Deadbolt is operated by key on external side and by thumb turn on internal side.

Double Cylinder – Deadbolt is operated by key on both external and internal side.

Dummy – Non locking set to be installed to the non-locking leaf of a set of double doors.

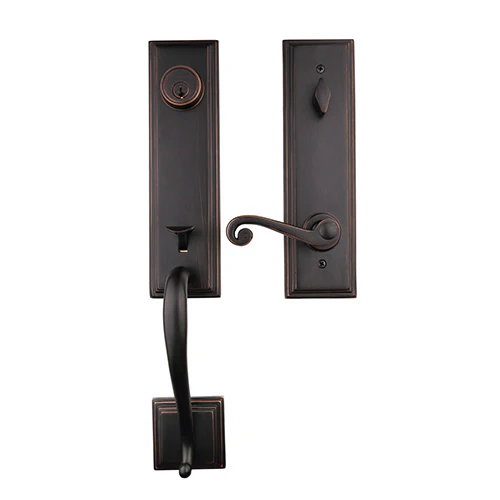

Interconnecting Set – Similar to single cylinder function ie. Deadbolt operated by key outside and thumb turn inside. However, interconnect has an added function that makes it different to a standard single cylinder deadbolt. It’s added function is a deadbolt and spring latch that retracts simultaneously when the internal lever/knob is turned to open your door. Also features matching long internal plate to match external plate.

Available Finishes:

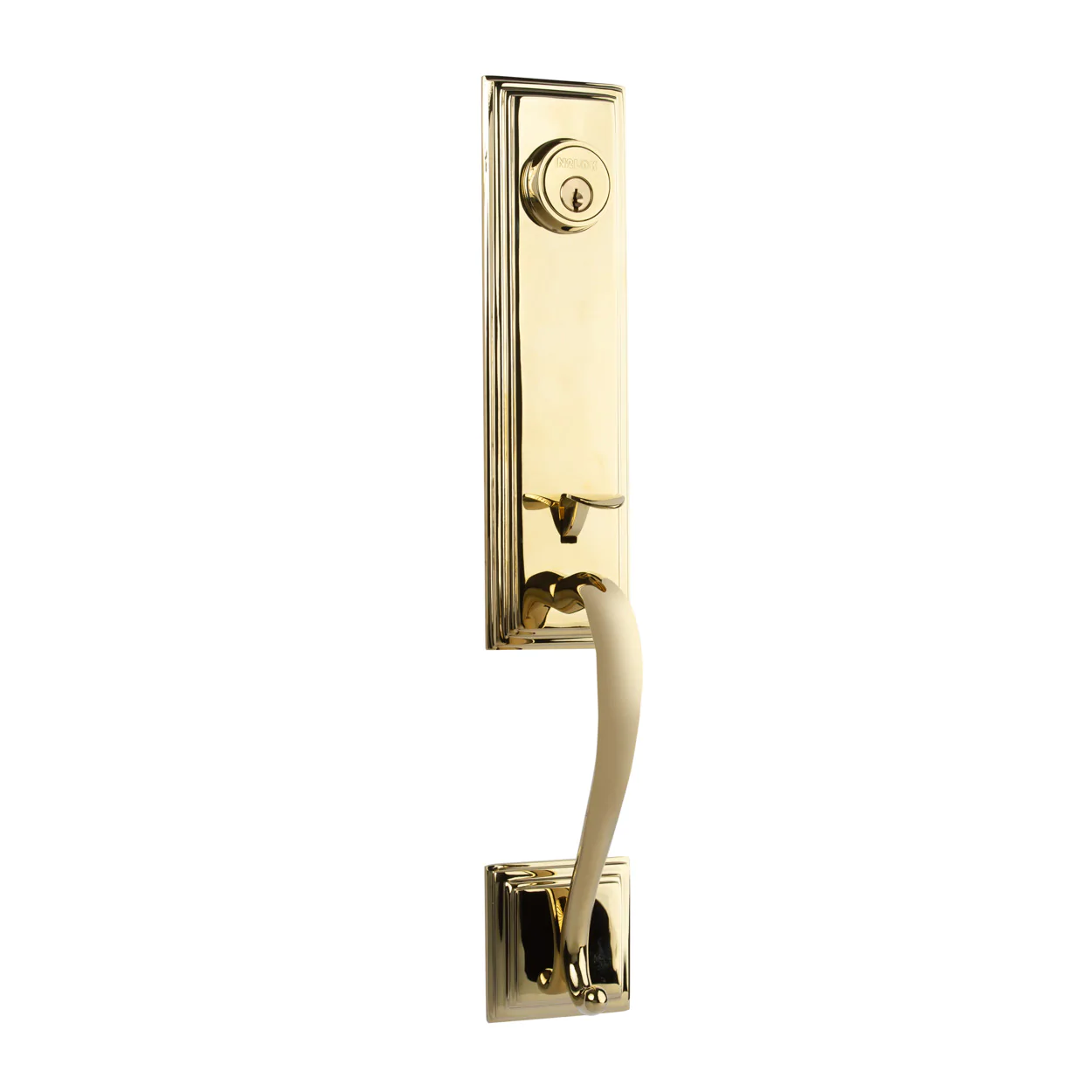

• PVD Polished Brass

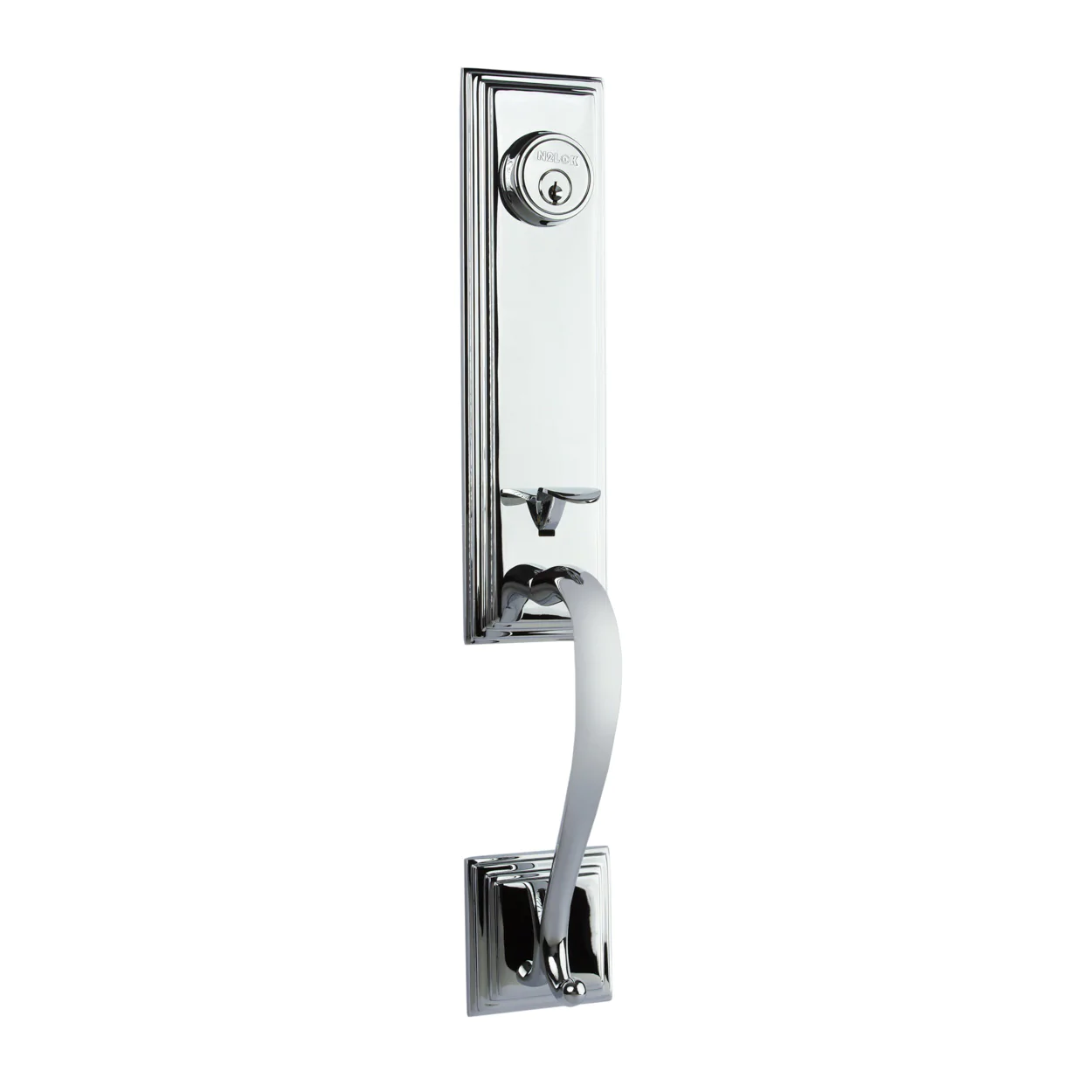

• Polished Chrome

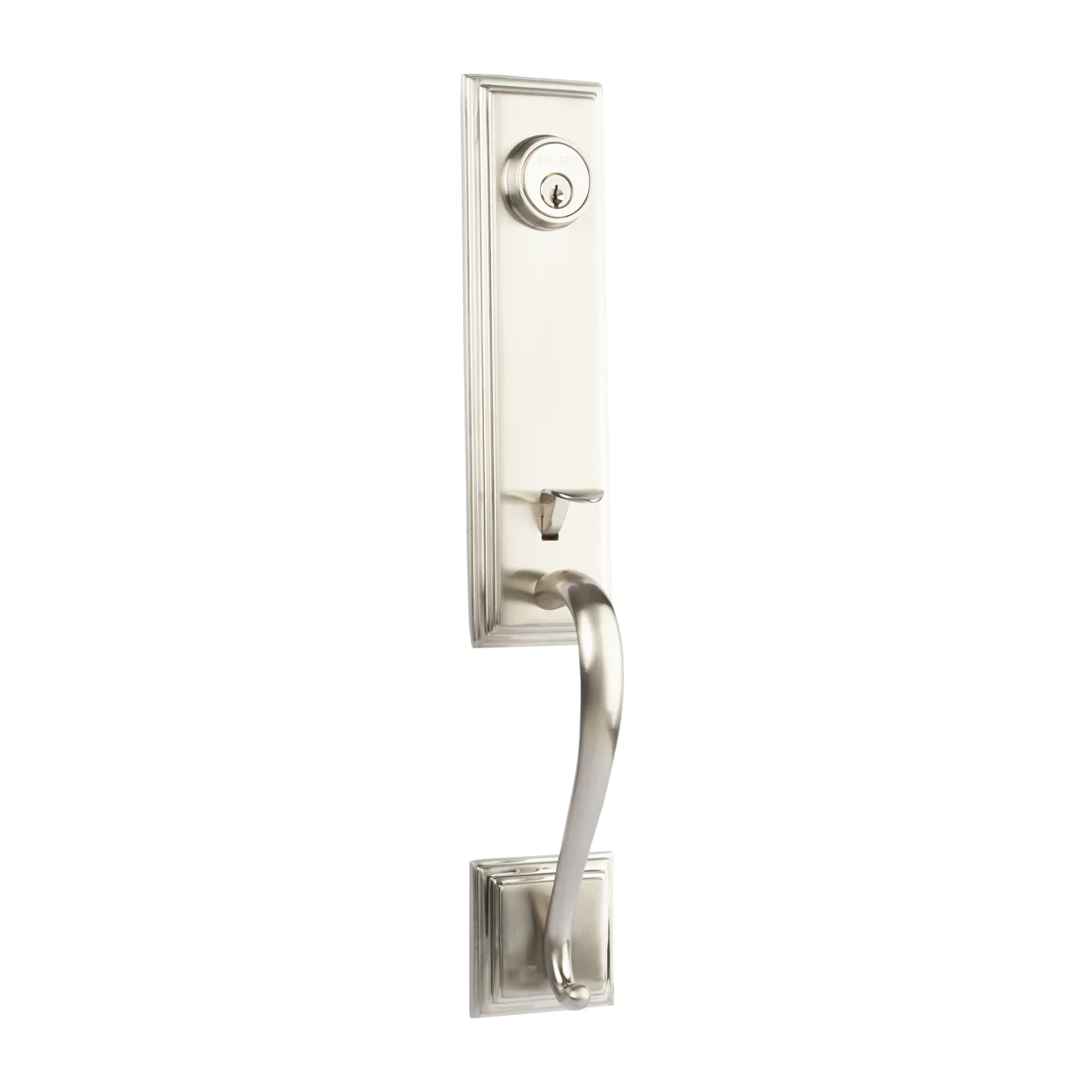

• Satin Nickel

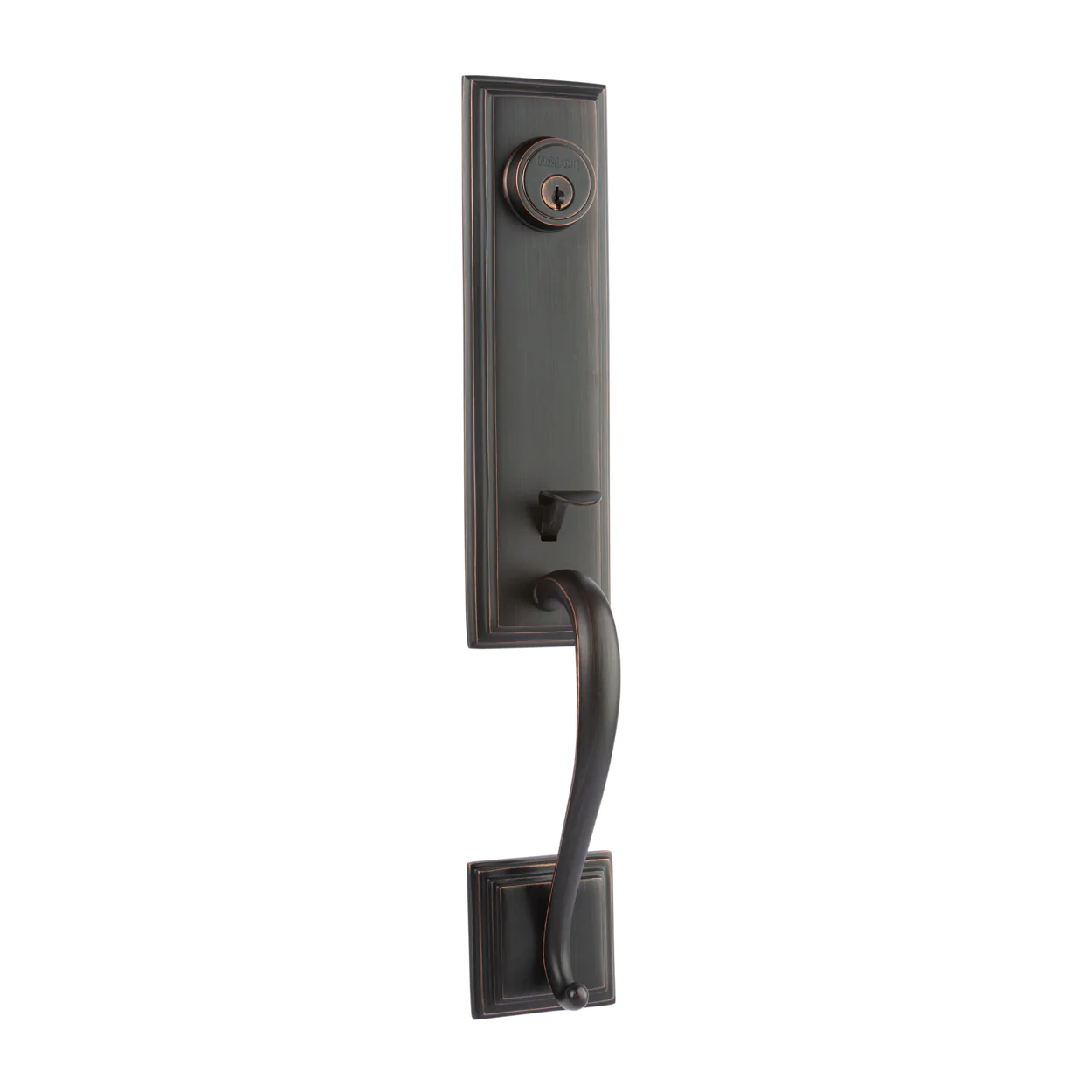

• Venetian Bronze
• Matt Black

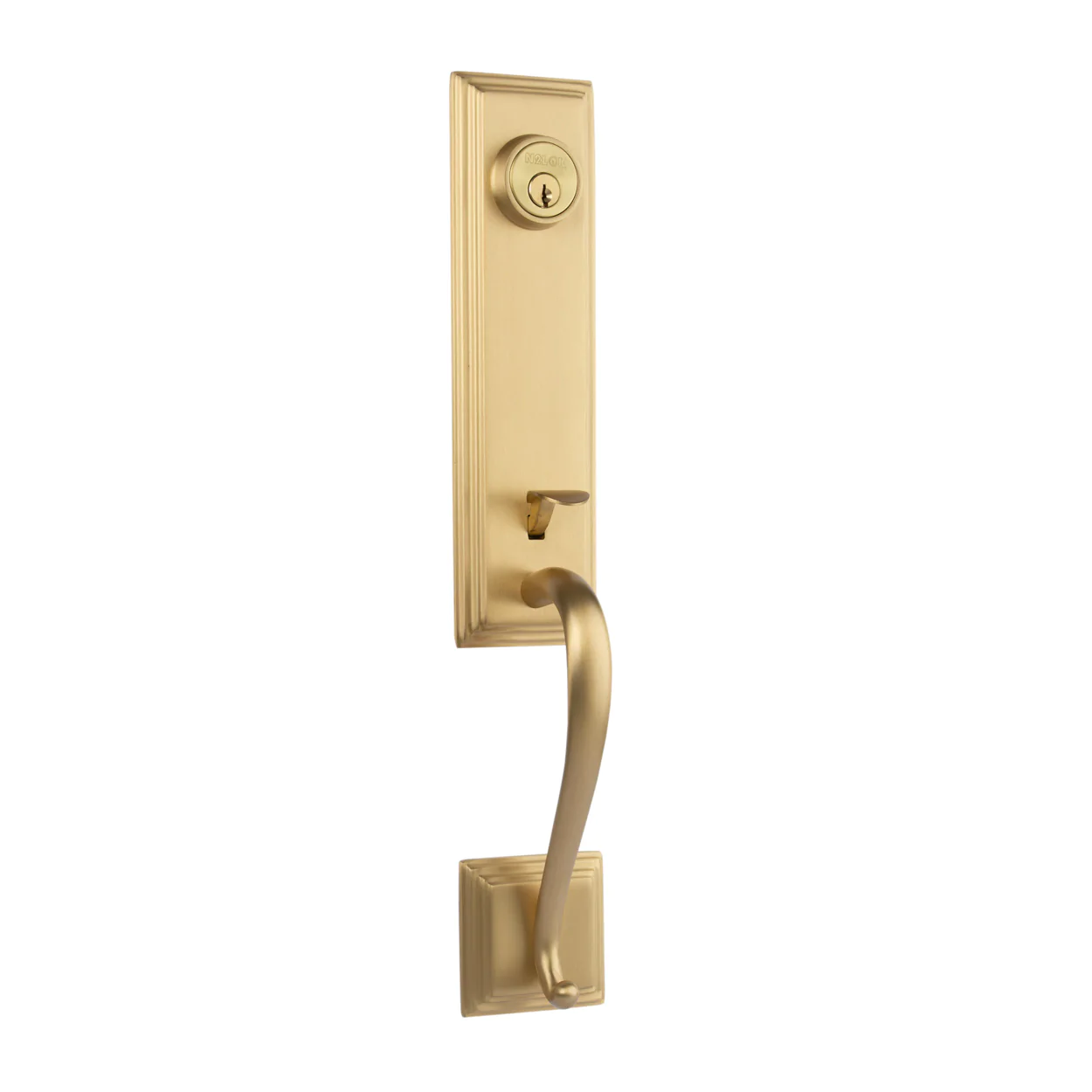

• Satin Brass

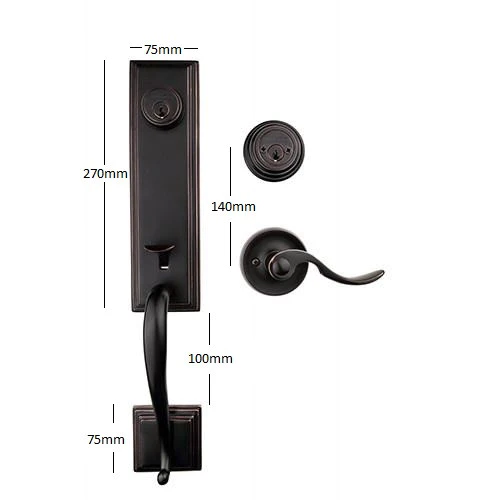

External Dimensions:

• Overall Length top to bottom = 445mm.
• Overall Width of escutcheon = 75mm.
• Projection of the Bow Handle from door surface = 79mm.
• Projection of Deadbolt = 26mm.

The internal Flutto Lever has a projection of 60mm & is 115mm long on a 75mm diameter round Rose Plate

* Note the manufacturer does not warrant the Satin Brass finish – as it’s pure satin brass, discoluration can occur over time as brass naturally changes colour. There is also limited 12 month warranty on the Venetian Bronze and Matt Black ‘living’ finishes .
