Argenta Pivotica Pro E 100 FM F90 – This Old House

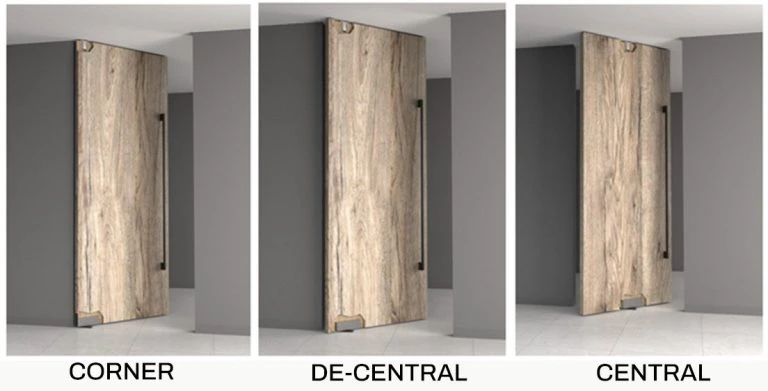

Pivotica Pro E 100 (FM F90) is a concealed self-closing pivot hinge with an adjustable soft close mechanism for doors weighing max. 100kg. The FM F90 is a floor mounted pivot hinge with a 90° hold-open position Hidden & Concealed The pivot system is placed inside the door keeping the door perfectly flushed, ensuring there are no interruptions to the sleek design of the wall. The Perfect Solution This self-closing pivot hinge is ideal for new builds, renovations, commercial projects and residential renovations.It is also suited for single, double or floor-to-ceiling doors or floors with underfloor heating. Easy & Fast Install The small & compact size of the pivot head makes milling easier and also offers 2 types of mounting options: standard lintel part and seamless ceiling part. The axle in the pivot head is also magnetic, making installation easy as it is magnetically pulled towards the ceiling part Optional Pivot Points Thanks to the extra bracket, the Pivotica Pro self-closing pivot hinge offers a choice of hinge position. If the hinge is installed in the centre of the door, the maximum recommended door width is 3000mm. For doors that are 2500mm high, we recommend using this pivot hinge in conjunction with the magnotica door closer.

Active 2 speed damper
Adjustable Floor Plate
NOTES
—
(1) In the corner position, 1000 mm. Doors wider than 1000 mm need pivot to be placed in the de-centralised position using the bracket included.
*All Prices are including GST
* * The minimum pivot point is 58.5mm with a max. door width of 1000 mm, by utilising the bracket in the kit, you can increase your pivot point accordingly.
NOTE: Lead time on orders is approx 7 business days
